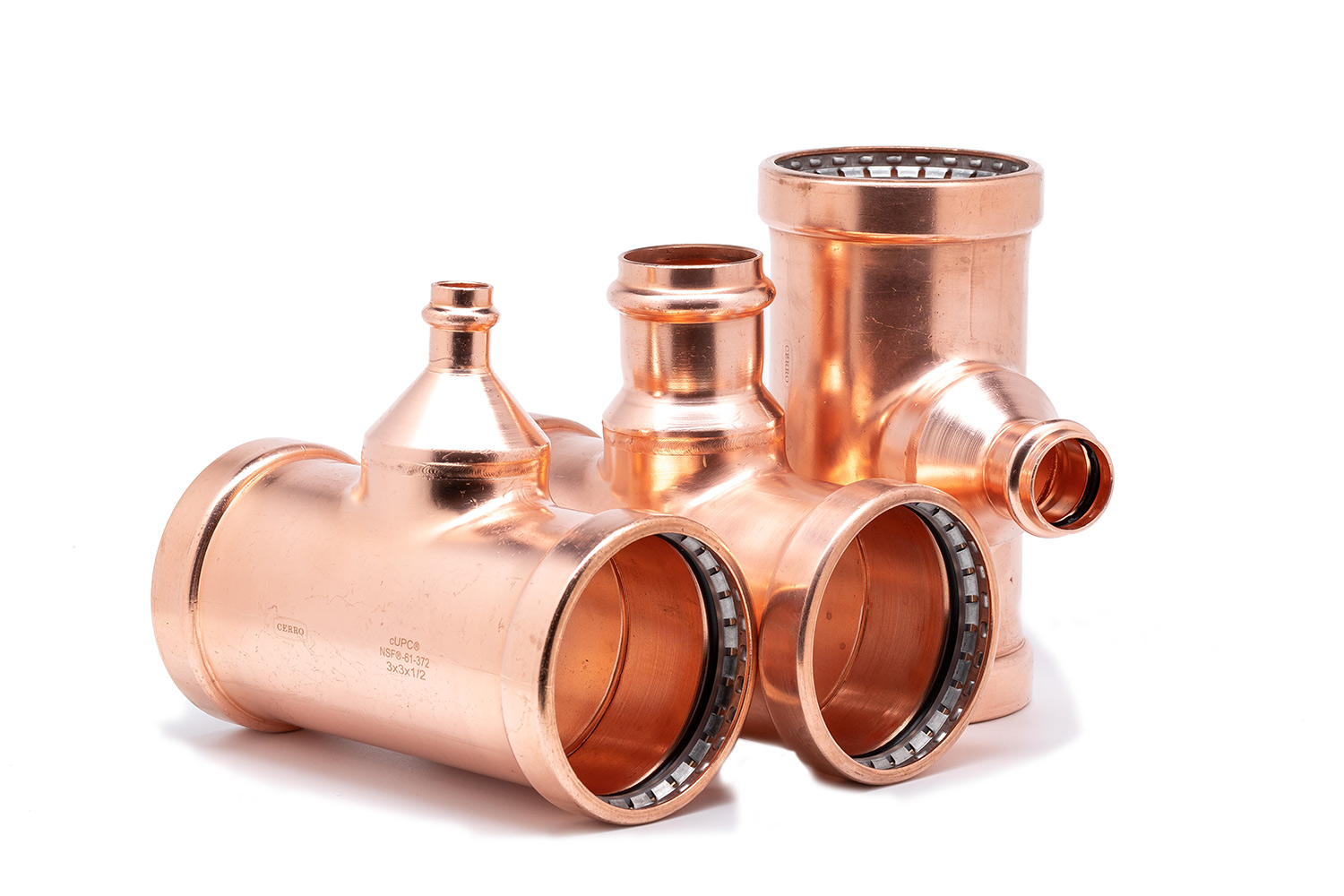

Tee – Reducer Branch XL

• NSF/ANSI 61-G/372 Lead Free
• ASME B16.51
• Uniform Plumbing Code (cUPC)
• IAPMO PS 117
• ICC ES PMG
• Copper Alloy C12200
• Potable Water
• EPDM O-Ring

Part # size type L1 (in) A1 (in) L2 (in) A2 (in) L3 (in) A3 (in) Each Weight (lbs)
11522 2-1/2" x 2-1/2" x 1/2" P x P x P 3.228 1.535 3.228 1.535 3.898 3.130 1.48
11524 2-1/2" x 2-1/2" x 3/4" P x P x P 3.228 1.535 3.228 1.535 3.878 2.972 1.46
11526 2-1/2" x 2-1/2" x 1" P x P x P 3.228 1.535 3.228 1.535 3.760 2.854 1.52
11528 2-1/2" x 2-1/2" x 1-1/4" P x P x P 3.228 1.535 3.228 1.535 3.819 2.717 1.63
11530 2-1/2" x 2-1/2" x 1-1/2" P x P x P 3.228 1.535 3.228 1.535 4.016 2.598 1.81
11532 2-1/2" x 2-1/2" x 2" P x P x P 3.228 1.535 3.228 1.535 3.504 1.929 1.94
11554 3" x 3" x 1/2" P x P x P 3.504 1.575 3.504 1.575 4.193 3.425 1.95
11556 3" x 3" x 3/4" P x P x P 3.504 1.575 3.504 1.575 4.173 3.268 1.99
11558 3" x 3" x 1" P x P x P 3.504 1.575 3.504 1.575 4.055 3.150 2.06
11560 3" x 3" x 1-1/4" P x P x P 3.504 1.575 3.504 1.575 4.114 3.012 2.13
11562 3" x 3" x 1-1/2" P x P x P 3.504 1.575 3.504 1.575 4.311 2.894 2.33
11564 3" x 3" x 2" P x P x P 3.504 1.575 3.504 1.575 3.799 2.224 2.50
11566 3" x 3" x 2-1/2" P x P x P 3.819 1.850 3.819 1.850 3.858 2.165 2.90
11572 4" x 4" x 1/2" P x P x P 3.976 1.594 3.976 1.594 4.626 3.858 3.37
11574 4" x 4" x 3/4" P x P x P 3.976 1.594 3.976 1.594 4.606 3.701 3.40
11576 4" x 4" x 1" P x P x P 3.976 1.594 3.976 1.594 4.488 3.583 3.65
11578 4" x 4" x 1-1/4" P x P x P 3.976 1.594 3.976 1.594 4.547 3.445 3.67
11580 4" x 4" x 1-1/2" P x P x P 3.976 1.594 3.976 1.594 4.744 3.327 3.79
11582 4" x 4" x 2" P x P x P 3.976 1.594 3.976 1.594 4.232 2.657 4.02
11584 4" x 4" x 2-1/2" P x P x P 4.252 1.890 4.252 1.890 4.350 2.657 4.54
11586 4" x 4" x 3" P x P x P 4.468 1.713 4.468 1.713 4.646 2.677 4.86
